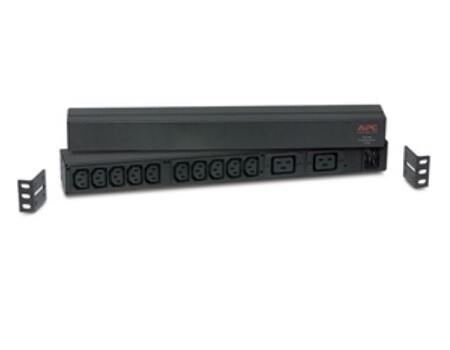

AP9559 PDU Horizontal basic 16A 208/230V (in IEC-320 C20) (out (10)IEC 320 C13 (2)IEC 320 C19) 1UR cord 2.5Mtrs Apc

In stock
Product Details
UPC: 731304123521
Brand: APC schneider-electric

Specifications AP9559 CatalogCatalog

Technical Specifications


Overload Protection No
Maximum Total Current Draw 16


Input frequency 50/60 Hz
Acceptable Input Voltage 90 - 250VAC
Number of Power Cords 1
Load Capacity 3680VA
Maximum Input Current 16A
Maximum Line Current 16A
Maximum Height 44MM, 4.4CM
Maximum Width 447MM, 44.7CM
Maximum Depth 57MM, 5.7CM
Net Weight 0.98KG
Shipping weight 2.36KG
Shipping Height 165MM, 16.5CM
Shipping Width 483MM, 48.3CM
Shipping Depth 152MM, 15.2CM
Color Black


Operating Temperature 0 - 45 °C
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 3048meters
Storage Temperature -25 - 65 °C
Storage Elevation 0 - 15240meters


Approvals CE, CUL listed, UL listed, VDE, Victoria
Standard warranty 2 years repair or replace

Sustainable Offer Status

RoHS Compliant
PEP Available in Documentation tab
EOLI Available in Documentation tab
