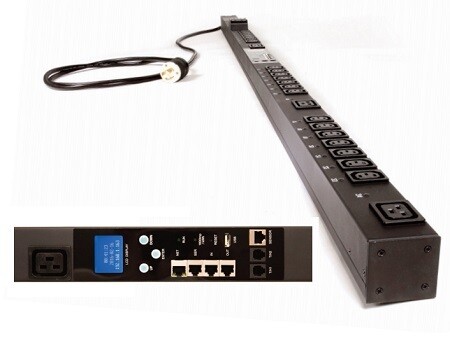

8MV08-BA21C-K1A PDU Vertical Monitored 30A 208V 4.9kW (input L6-30P) (output C13(21) + C19(3)) (output 208V) 73in (1850mm) Siemon

SKU 8MV08-BA21C-K1A
$1,079.84
Out of stock
1
Product Details

Specifications 8MV08-BA21C-K1A CatalogCatalog


Monitored PDUs

Monitored PDUs enable remote monitoring at an aggregate, device-level via an Ethernet port, generating a smaller quantity of information to simplify management.

Built-in display for local use

Device level monitoring

Remote monitoring via Ethernet port

Environmental sensor ports

IP address sharing

Log trends and historical data

User defined alarms.


Ordering Information

INPUT
CURRENT
INPUT
VOLTAGE
POWER INPUT PLUG OUTPUT
RECEPTACLES
OUTPUT
VOLTAGE
PART NUMBER UL* CE** MOUNTING
20A 120/208V 5.7kW NEMA L21-20P 5-20R (24) 120V 8MV11-AB24Z-K1A Vertical
20A 120/208V 5.7kW NEMA L21-20P C13 (21) + C19 (3) 120V 8MV11-BA21C-K1A Vertical
15A 120V 1.4kW NEMA L5-15P 5-15R (8) 120V 8MH04-AA08Z-K1A Horizontal
15A 120V 1.4kW NEMA L5-15P 5-15R (24) 120V 8MV04-AA24Z-K1A Vertical
20A 208V 3.3kW NEMA L6-20P C13 (21) + C19 (3) 208V 8MV07-BA21C-K1A Vertical
30A 208V 4.9kW NEMA L6-30P C13 (21) + C19 (3) 208V 8MV08-BA21C-K1A Vertical
16A 230/400V 11.0kW IEC 60309 C13 (24) + C19 (6) 230V 8MV26-BA24E-K1A Vertical
32A 230/400V 22.0kW IEC 60309 C13 (21) + C19 (3) 230V 8MV27-BA21C-K1A Vertical
16A 230V 3.6kW IEC 60309 C13 (8) 230V 8MH20-BA08Z-K1A Horizontal
16A 230V 3.6kW IEC C20 C13 (8) 230V 8MH33-BA08Z-K1A Horizontal
32A 230V 7.3kW IEC 60309 C13 (8) 230V 8MH22-BA08Z-K1A Horizontal
16A 230V 3.6kW IEC 60309 C13 (24) + C19 (6) 230V 8MV20-BA24E-K1A Vertical
16A 230V 3.6kW IEC 60309 C13 (36) 230V 8MV20-BA36Z-K1A Vertical
16A 230V 3.6kW IEC C20 C13 (24) + C19 (6) 230V 8MV33-BA24E-K1A Vertical
32A 230V 7.3kW IEC 60309 C13 (18) + C19 (6) 230V 8MV22-BA18E-K1A Vertical
32A 230V 7.3kW IEC 60309 C13 (36) 230V 8MV22-BA36Z-K1A Vertical

Other configurations are available - please contact your local Technical Support Group for more information.

* UL is required for North America
** CE is required for the European Economic Area
