5120UL 0021000 Cable 2Cond AWG14 300V 1000FT Fire alarm PVC red Belden

SKU 5120UL 0021000
$249.35
Out of stock
1
Product Details

Specifications 5120UL CatalogCatalog

Description

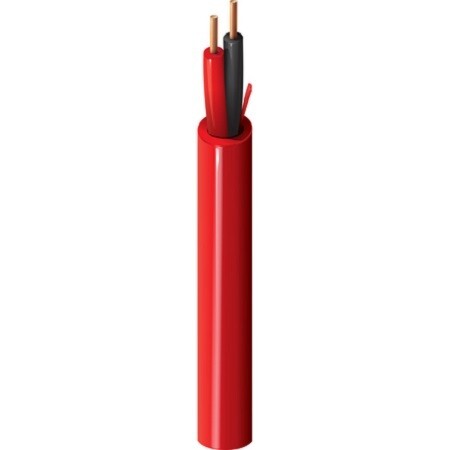

Fire Alarm Cable, Riser-FPLR, 2-14 AWG solid bare copper conductors with polypropylene insulation, PVC jacket with ripcord.

Construction Details

Conductor
Element Number of Element AWG Stranding Material
Conductor(s) 2 14 Solid BC - Bare Copper
Insulation
Element Material Thickness [in.] Color Code
Conductor(s) PP - Polypropylene 0.010 Black, Red
Outer Jacket Material
Material Thickness Nom. Diameter Ripcord
PP - Polypropylene 0.017 in 0.205 in Yes
Cable Diameter (Nominal): 0.205 in

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Conductor(s) 2.43 Ohm/1000ft 23 pF/ft 8.0 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V (FPLR)

Mechanical Characteristics

Temperature
UL Rating Operating
75°C -20°C to +75°C
Bend Radius
Stationary Min. Installation Min.
2 in 2.1 in
Max. Pull Tension: 99 lbs
Bulk Cable Weight: 33 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor - Riser, Indoor
Flammability / Fire Resistance: UL1666 Riser, IEC 60332-1-2
NEC / UL Compliance: Article 760, FPLR
CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 6120UL
